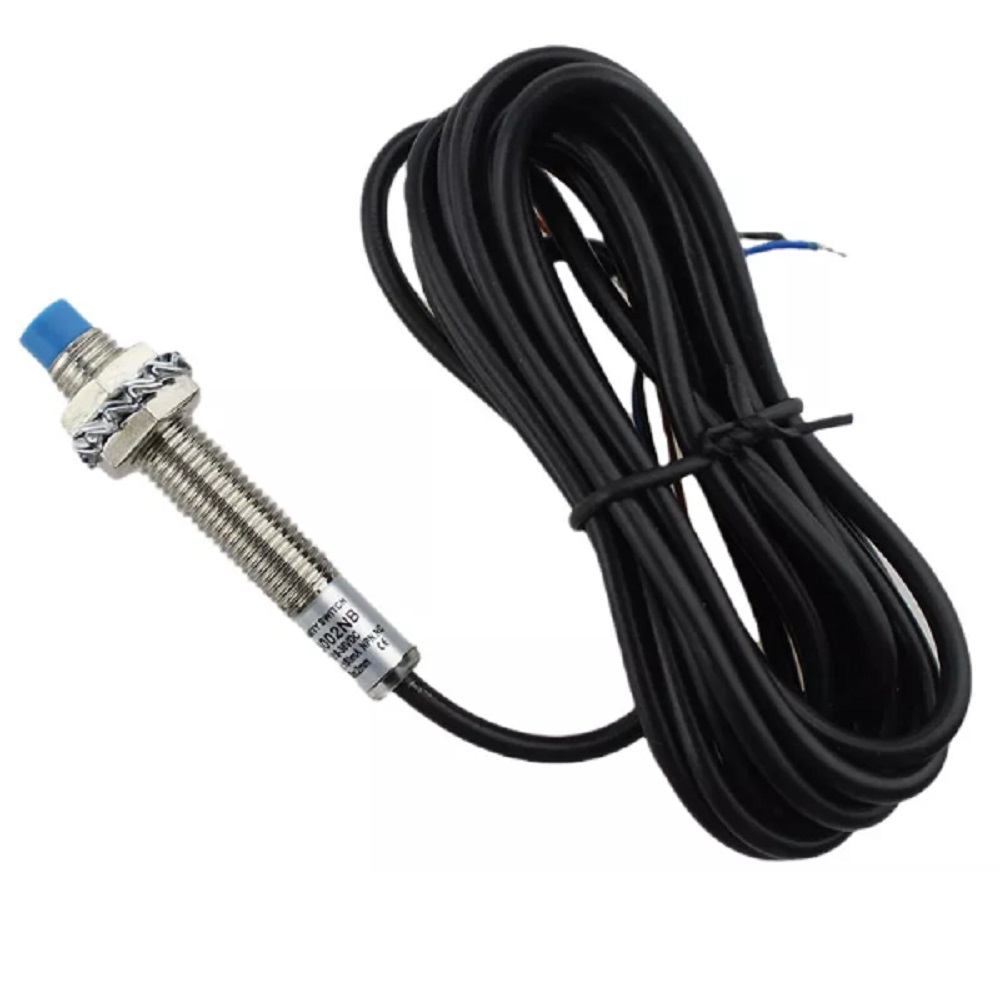

Enertech M8 NPN NC Inductive Proximity Sensor SN 2mm EN-PD08-2DN DC6-36V-Non-Flush
Availability: In stock
₹ 177.5 (+18.0% GST extra)
(Min.Order)
The Enertech EN-PD08-2DN is a high-quality M8 inductive proximity sensor designed for precise and reliable detection of metallic objects. This sensor features a Normally Closed (NC) output with a sensing distance of 2mm. Operating within a wide voltage range of DC 6-36V, it is well-suited for various industrial and automation applications. The sensor is designed for non-flush mounting, allowing for versatile installation options.
Key Features
- Output Type: NPN Normally Closed (NC) output for reliable detection and control.
- Sensing Distance: 2mm, ensuring accurate and consistent object detection.
- Operating Voltage: DC 6-36V, providing flexibility for use in different voltage environments.
- Mounting Type: Non-flush mounting, allowing installation where the sensing face is exposed.
- Durable Construction: Built with high-quality materials to withstand demanding industrial conditions.
- Compact Design: M8 size for easy integration into various systems and equipment.
Applications
- Industrial Automation: Detects the presence or absence of objects in automated systems.
- Conveyor Systems: Monitors items on conveyor belts for sorting and processing.
- Packaging Machines: Ensures proper placement and presence of items during packaging.
- Assembly Lines: Verifies component placement and presence in manufacturing processes.
- Robotics: Provides feedback for robotic arm positioning and movement.
Technical Specifications
- Model: EN-PD08-2DN
- Brand: Enertech
- Output Type: NPN NC (Normally Closed)
- Sensing Distance: 2mm
- Operating Voltage: DC 6-36V
- Current Consumption: Typically < 15mA (confirm with specific datasheet)
- Output Current: ≤ 200mA
- Switching Frequency: Typically 1kHz (confirm with specific datasheet)
- Temperature Range: -25?C to +70?C
- Protection Rating: IP67, ensuring protection against dust and water ingress
- Housing Material: Nickel-plated brass for enhanced durability
- Connection: 2m cable or M8 connector (confirm specific model variant)
Installation and Use
- Mounting: Install the sensor in a non-flush position, ensuring the sensing face is exposed and not recessed.
- Wiring: Connect the sensor to the power supply and control system, following the wiring diagram provided by the manufacturer.
- Adjustment: Position the sensor at the appropriate distance from the target object, ensuring accurate detection within the 2mm sensing range.
- Testing: Verify the sensor operation by moving a target object in and out of the sensing range, ensuring the NPN NC output switches correctly.
Benefits
- High Accuracy: 2mm sensing distance ensures precise detection for various applications.
- Flexible Voltage Range: Operates on a wide DC voltage range, making it suitable for different systems.
- Reliable Output: NPN NC output provides dependable switching for control systems.
- Durable Design: IP67 rating and robust construction ensure reliable performance in harsh environments.
- Easy Integration: Compact M8 size and standard connections facilitate straightforward installation and use.
The Enertech EN-PD08-2DN M8 NPN NC Inductive Proximity Sensor is an excellent choice for applications requiring accurate and reliable object detection. Its durable design, flexible voltage range, and precise sensing distance make it a versatile and dependable component for industrial automation and control systems.
