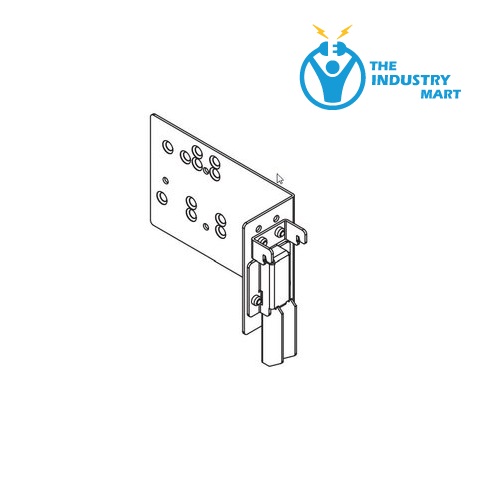

Omron S8FS-C35024D Power supply 350W, 100-240 VAC input, 24VDC, 14.6A output Din Rail
Availability: Out of stock
₹ 0.0 (+18.0% GST extra)
(Min.Order)
Omron S8FS-C35024D Power Supply Din Rail ,Covered type,100 to 240 VAC, Power rating 350W, Output: 24VDC, 14.6A Terminal block facing forward (Screw terminal), Harmonic current emissions,Omron Smps,Industrial use for Switch Mode Power Supply Omron
|
Power rating Item Output voltage |
350 W |
||||||
|
5 V |
12 V |
24 V |
36 V |
48 V |
|||
|
Efficiency * |
115 VAC input |
77% typ. |
83% typ. |
86% typ. |
87% typ. |
87% typ. |
|
|
230 VAC input |
78% typ. |
85% typ. |
88% typ. |
88% typ. |
88% typ. |
||
|
Input |
Voltage range * |
Single phase 90 to 132 VAC , Single phase 180 to 264 VAC , 254 to 373 VDC Select with the switch. (The L terminal for the DC input is the positive side and safety standards do not apply.) (Derating is required according to the input voltage. Refer to Derating Curves on page 18.) |
|||||
|
Frequency * |
50 /60 Hz (47 to 450 Hz) |
||||||
|
Current * |
115 VAC input |
6.4 A typ. |
|||||
|
230 VAC input |
3.5 A typ. |
||||||
|
Power factor |
--- |
||||||
|
Leakage current |
115 VAC input |
0.40 mA |
0.40 mA |
0.40 mA |
0.40 mA |
0.40 mA |
|
|
230 VAC input |
0.75 mA |
0.80 mA |
0.75 mA |
0.80 mA |
0.80 mA |
||
|
Inrush current * (for a cold start at 25°) |
115 VAC input |
16 A typ. |
|||||
|
230 VAC input |
32 A typ. |
||||||
|
Output |
Rated Output Current |
60 A |
29 A |
14.6 A |
9.7 A |
7.32 A |
|
|
Voltage adjustment range * |
-10% to 10% (with V. ADJ) |
||||||
|
Ripple & Noise voltage * |
100 to 120 VAC/200 to 240 VAC input |
110 mVp-p max. |
130 mVp-p max. |
120 mVp-p max. |
180 mVp-p max. |
180 mVp-p max. |
|
|
Input variation influence * |
0.5% max. |
||||||
|
Load variation influence * |
2.0% max. |
1.0% max. |
|||||
|
Temperature vari- ation influence |
100 to 120 VAC/200 to 240 VAC input |
0.03%/°C max. |
|||||
|
Startup time * |
115 VAC input |
610 ms typ. |
620 ms typ. |
580 ms typ. |
610 ms typ. |
610 ms typ. |
|
|
230 VAC input |
570 ms typ. |
590 ms typ. |
560 ms typ. |
590 ms typ. |
590 ms typ. |
||
|
Hold time * |
115 VAC input |
25 ms typ. |
18 ms typ. |
17 ms typ. |
19 ms typ. |
19 ms typ. |
|
|
230 VAC input |
31 ms typ. |
25 ms typ. |
23 ms typ. |
25 ms typ. |
24 ms typ. |
||
|
Addi- tional func- tions |
Overload protection |
Yes, automatic reset |
|||||
|
Overvoltage protection * |
Yes, 115% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again) |
||||||
|
Overheat protection |
Yes, power shut off (shut off the input voltage and turn on the input again) (Overheat protection when the cooling fan is in an abnormal condition) |
||||||
|
Series operation |
Yes (For up to 2 Power Supplies, external diodes are required.) |
||||||
|
Parallel operation |
No (However, backup operation is possible, external diodes are required.) |
||||||
|
Remote sensing |
No |
||||||
|
Remote control |
No |
||||||
|
Output indicator |
Yes (LED: Green) |
||||||
|
Insula- tion |
Withstand voltage |
3 kVAC for 1 min. (between all input terminals and output terminals) current cutoff 20 mA |
|||||
|
2 kVAC for 1 min. (between all input terminals and PE terminals) current cutoff 20 mA |
|||||||
|
1 kVAC for 1 min. (between all output terminals and PE terminals) current cutoff 20 mA |
|||||||
|
Insulation resistance |
100 MÙ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC |
||||||
|
Envi- ronment |
Ambient operating temperature |
-20 to 60°C (Derating is required according to the temperature. Refer to Derating Curves on page 17.) (with no condensation or icing) |
|||||
|
Storage temperature |
-40 to 85°C (with no condensation or icing) |
||||||
|
Ambient operating humidity |
20% to 90% (Storage humidity: 10% to 95%) |
||||||
|
Vibration resistance |
10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions |
||||||
|
Shock resistance |
150 m/s2, 3 times each in ±X, ±Y, ±Z directions |
||||||
|
Reliabil- ity |
MTBF |
135,000 hrs min. |
|||||
|
Life expectancy * |
10 years min. |
||||||
|
Con- struc- tion |
Dimensions (W´H´D) |
Refer to Dimensions on pages 22 and 25. |
|||||
|
Weight |
800 g max. |
||||||
|
Cooling fan |
Yes (ON/OFF control according to internal temperature) |
||||||
|
Degree of protection |
--- |
||||||
|
Stan- dards |
Harmonic current emissions |
--- |
|||||
|
EMI |
Conducted Emissions |
Conforms to EN 61204-3 Class A, EN 55011 Class A |
|||||
|
Radiated Emissions |
Conforms to EN 61204-3 Class A, EN 55011 Class A |
||||||
|
EMS |
Conforms to EN 61204-3 high severity levels |
||||||
|
Safety Standards |
Approved Standards UL : cURus UL 60950-1 (Recognition) OVC II Pol2 CSA: cURus C22.2 No60950-1 Conformed Standards EN: EN 60950-1 OVC II Pol2 |
||||||
|
Marine Standards |
No |
||||||
|
SEMI |
No |
||||||
