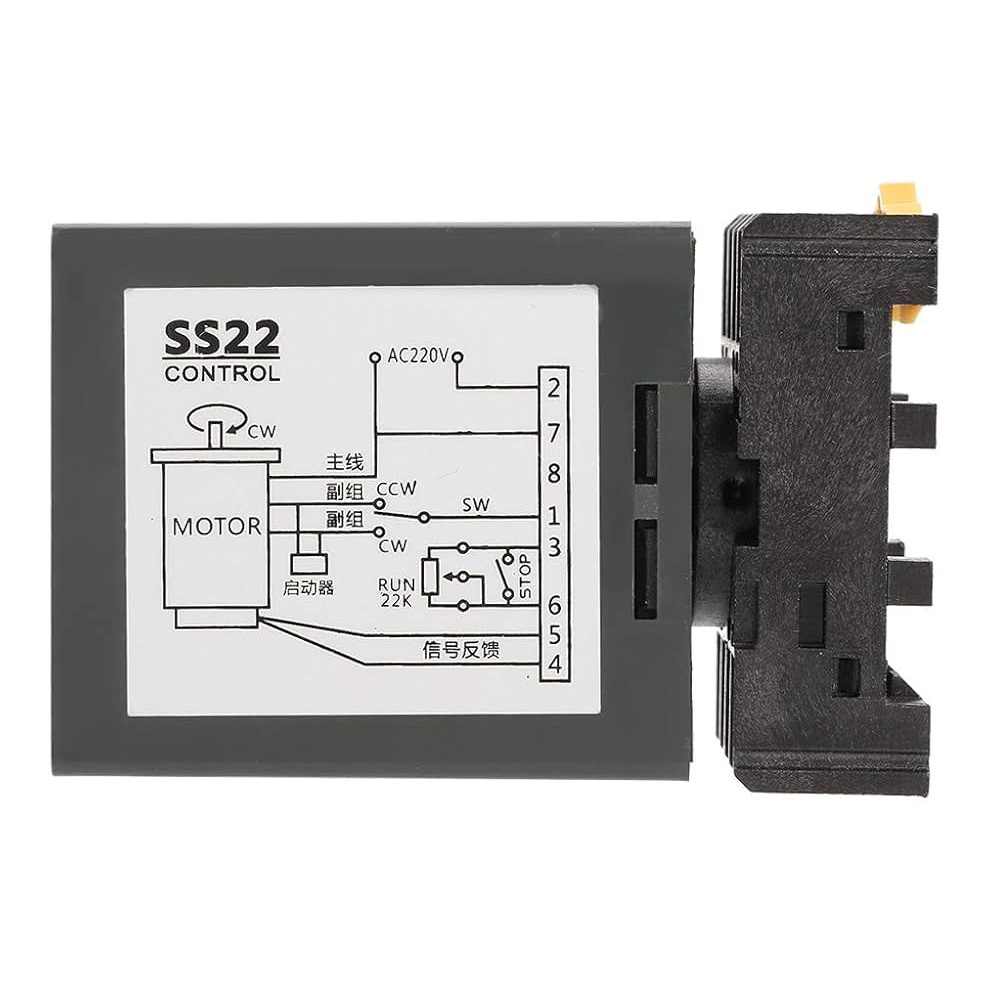

The SS-22 Electric Motor Speed Controller is a high-performance speed control unit designed for precise regulation of AC motors operating at 220V. This versatile and reliable controller is ideal for a variety of applications, providing smooth and efficient control over motor speed to enhance the performance and longevity of your equipment.

Key Features

• Wide Voltage Range: Designed for AC 220V input, ensuring compatibility with standard power supplies.
• Precise Speed Control: Allows for fine-tuning of motor speed to match specific operational requirements.
• User-Friendly Interface: Easy-to-use controls for adjusting speed, making it accessible for both professionals and DIY enthusiasts.
• Durable Construction: Built with high-quality materials to ensure long-lasting performance and reliability.
• Compact Design: Space-saving design that can be easily integrated into various setups.
• Overload Protection: Equipped with safety features to protect the motor and controller from overload conditions.
• Efficient Performance: Enhances motor efficiency and reduces energy consumption.

Applications

• Industrial Machinery: Ideal for controlling the speed of motors in industrial machines and equipment.
• HVAC Systems: Used in heating, ventilation, and air conditioning systems to regulate fan and blower speeds.
• Home Appliances: Suitable for use in household appliances requiring variable speed control.
• Pumps and Compressors: Ensures optimal performance of pumps and compressors by adjusting motor speed.
• Conveyors and Assembly Lines: Provides precise speed control for motors used in conveyor belts and automated assembly lines.

Technical Specifications

• Model: SS-22
• Input Voltage: AC 220V
• Control Range: Confirm with manufacturer?s datasheet for specific speed control range
• Load Capacity: Confirm maximum load capacity with manufacturer?s datasheet

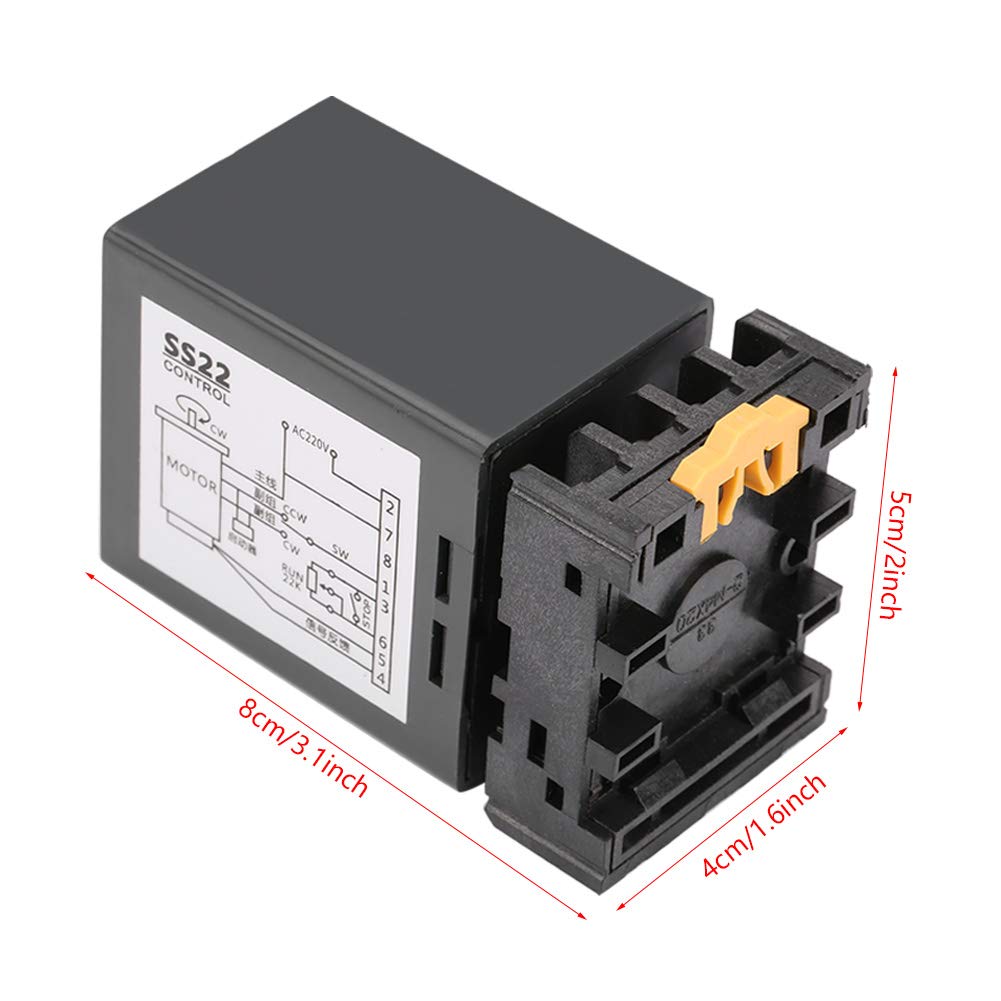

• Dimensions: Compact design (confirm specific dimensions with manufacturer?s datasheet)
• Weight: Confirm with manufacturer?s datasheet
• Operating Temperature: Confirm temperature range with manufacturer?s datasheet
• Protection Features: Overload protection, short circuit protection (confirm specific protection features with manufacturer?s datasheet)
• Installation: Simple installation with mounting options (confirm specific installation guidelines with manufacturer?s datasheet)

Installation and Use

1. Inspect the Unit: Ensure the speed controller is free from damage and all components are intact.
2. Connect to Power Supply: Attach the controller to an AC 220V power source.
3. Connect to Motor: Securely connect the motor to the controller, following the wiring diagram provided in the user manual.
4. Adjust Speed: Use the control interface to set the desired motor speed.
5. Test Operation: Power on the system and test the motor to ensure it operates smoothly at the adjusted speed.
6. Secure the Unit: Mount the controller in a suitable location to prevent movement and potential damage.

Benefits

• Enhanced Control: Provides precise control over motor speed, improving the performance and efficiency of your equipment.
• Energy Efficiency: Helps reduce energy consumption by allowing for optimal motor speed adjustments.
• Extended Motor Life: Protects motors from overload and excessive wear by regulating speed and operation.
• Versatile Applications: Suitable for a wide range of applications, from industrial machinery to home appliances.
• Safety Features: Built-in protection mechanisms ensure safe and reliable operation.

The SS-22 Electric Motor Speed Controller is an essential tool for anyone looking to optimize the performance and efficiency of their AC motors. With its precise control, durable construction, and user-friendly interface, it is a versatile and reliable solution for a variety of speed control needs.
